STARLINK SETUP GUIDE

How To Set Up Starlink In A Perth Home

Starlink can be a brilliant option for homes with poor internet options, but the quality of the installation matters. Dish location, roof mounting, cable entry and WiFi setup can all affect the final result.

View Starlink Installation Options

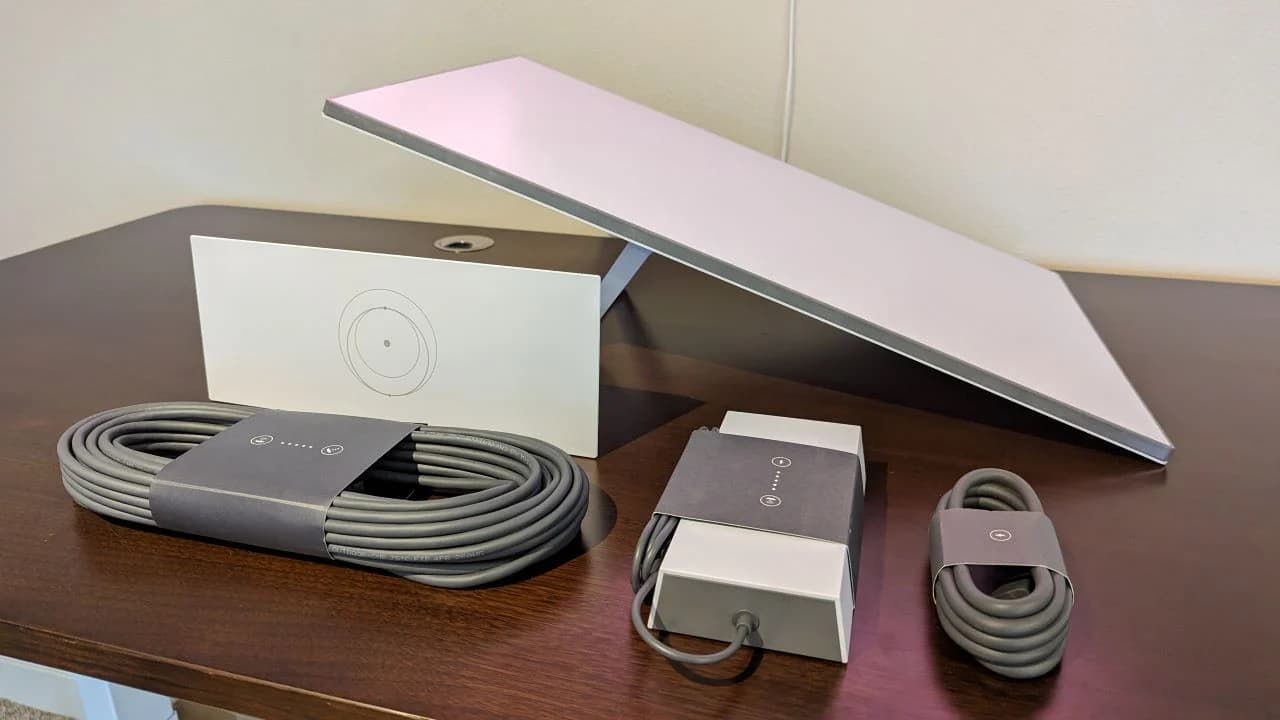

Starlink kit parts laid out before installation

Before You Start: How The Starlink Kit Connects Together

A typical Starlink setup is fairly simple once you understand how the parts connect. The Starlink dish, often called Dishy, connects back to the Starlink router using the supplied Starlink cable.

The router then plugs into power. Depending on the Starlink kit version, there may be a separate power supply or the power may be handled through the router system itself.

In simple terms, the chain is: power at the wall, power/router equipment inside the home, Starlink cable to the dish, and the dish mounted outside with a clear view of the sky.

The hard part is usually not the app setup. The hard part is choosing the right mounting location, running the cable cleanly, getting into the roof space safely, and setting up WiFi so it actually works where people need it.

STEP 1

What You Need For A Proper Starlink Setup

The kit gives you the core Starlink hardware, but most Perth homes still need proper mounting hardware, cable protection and suitable tools for a clean installation.

Starlink kit, including dish, router and Starlink cable
Suitable Starlink mount
Pole adapter if required for your chosen mount
UV-rated conduit for exposed cable runs
Cable entry solution such as a Dektite on Colorbond roofs
Dust plate or brush plate for internal wall cable exit
Drill, driver, roof-safe access equipment and basic hand tools
Sealant and fixings suitable for the roof or wall material

Mount recommendation

For tiled roofs, a gutter mount is often a practical option because the roof space is usually easier to access and the cable can often be run neatly into the ceiling space. For Colorbond roofs, a mount with stabilising legs is usually a better option because it spreads the load and keeps the dish more stable.

STEP 2

Find The Best Location For The Dish

Before drilling or mounting anything, use the Starlink app to check the proposed dish location. The dish needs a clear view of the sky, and small obstructions can cause dropouts.

Open the Starlink app
Use the obstruction checker
Test the location where you want to mount the dish
Avoid trees, roof lines, chimneys, antennas and nearby structures
Think about both signal quality and practical cable routing

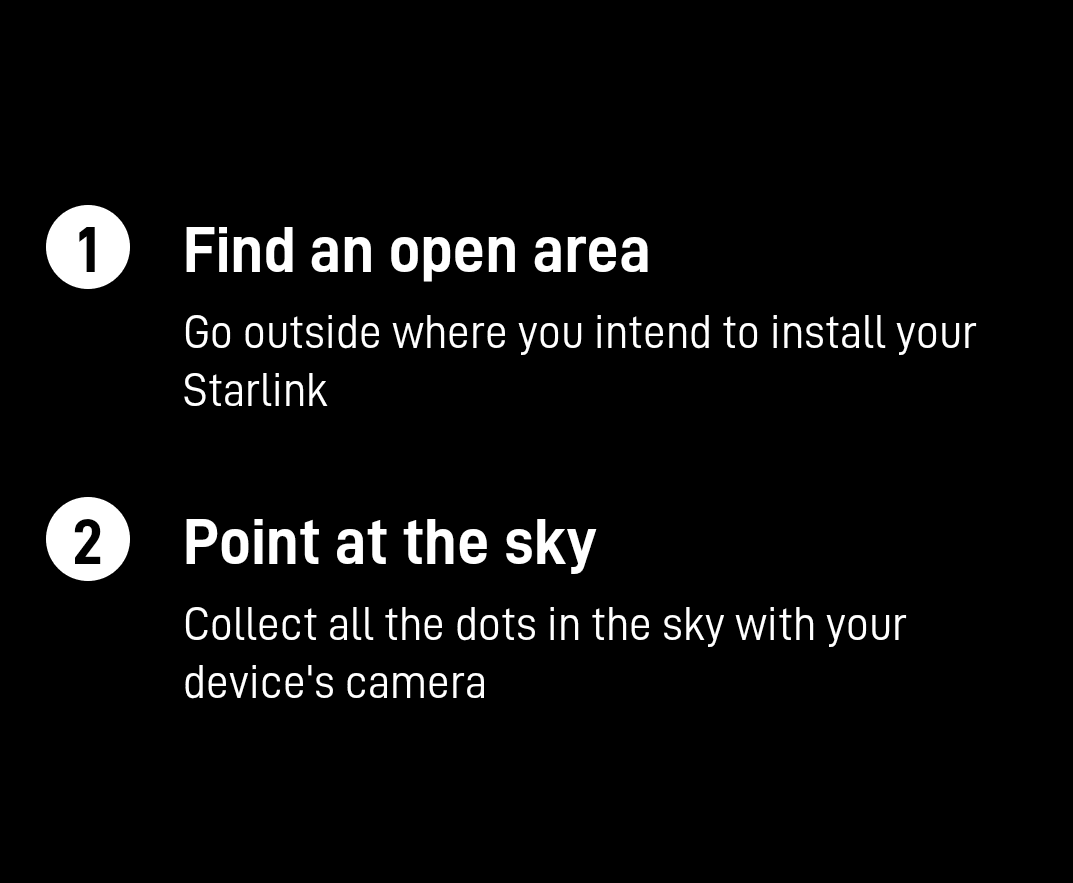

Using the Starlink app to check for obstructions

STEP 3

Mount The Starlink Dish Securely

Once you have confirmed the location, mount the dish securely using the correct hardware for the roof type.

On tile roofs, a gutter mount can be a good option because it avoids unnecessary penetrations through tiles and often gives easier access to the roof cavity.

On Colorbond roofs, a roof mount with stabilising legs is usually preferred. If the cable enters through the roof sheet, a properly installed Dektite is recommended to help maintain weather protection.

Any cable exposed to sun or weather should be run in conduit. Loose exposed cable across a roof is poor workmanship and can create problems later.

Use the correct mount for the roof type
Keep the dish stable and secure
Avoid unnecessary roof penetrations where possible
Use conduit for exposed cable runs
Use a proper cable entry method for Colorbond roofs

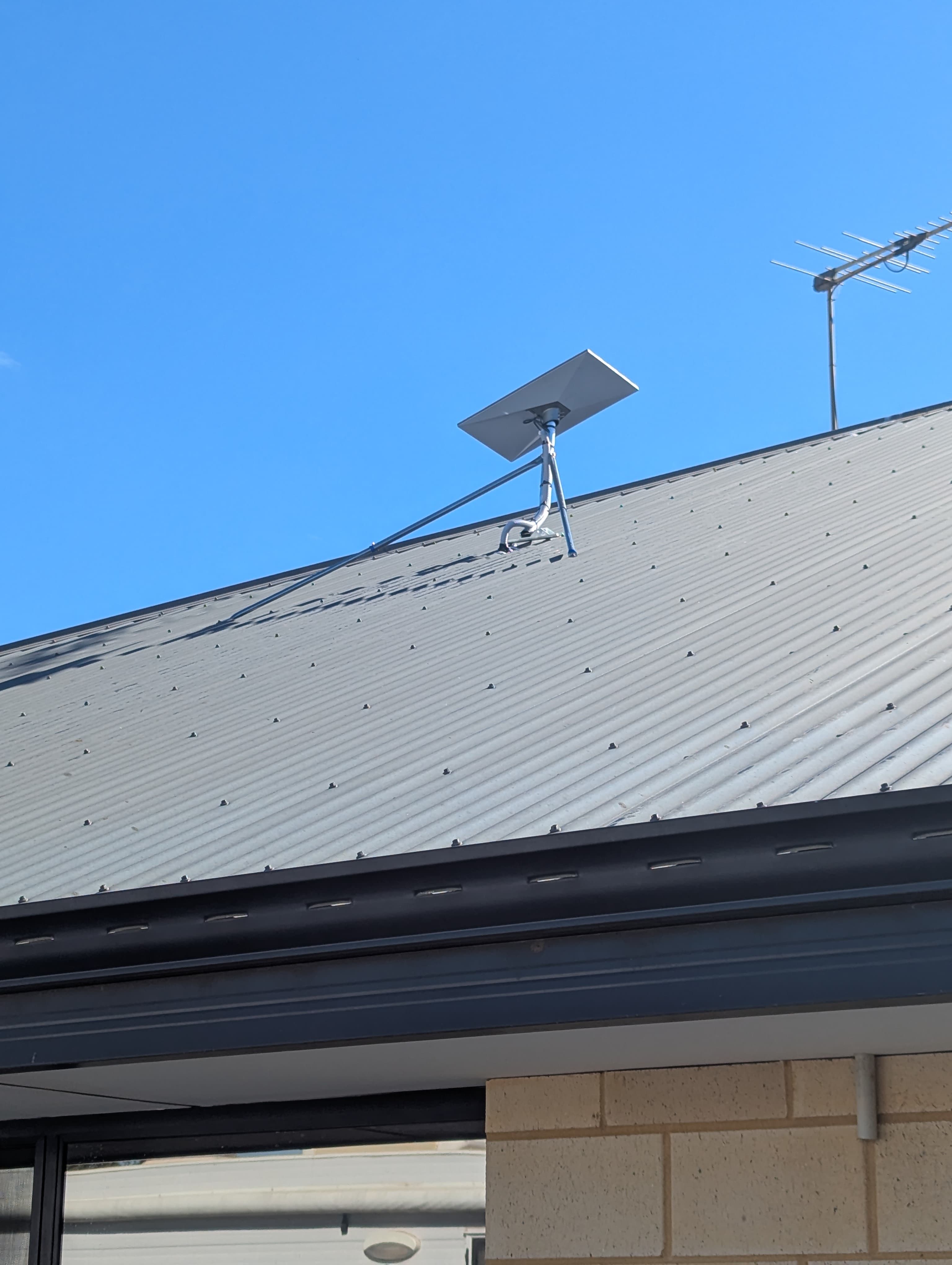

Starlink dish mounted securely on a roof

STEP 4

Run The Starlink Cable Cleanly

The Starlink cable should be protected, hidden where possible, and routed in a way that avoids damage.

Where possible, run the cable through the roof space. This gives the cleanest result and avoids unnecessary external conduit.

For double brick Perth homes, an external wall cavity can sometimes be used to bring the cable down neatly. If there is no usable cavity, solid 25mm conduit can be used externally for a clean and protected cable run.

The aim is simple: protect the cable, keep the installation neat, and avoid ugly or vulnerable cable runs.

Run through the roof space where possible
Use wall cavities when practical
Use solid conduit when no cavity is available
Avoid sharp bends and cable damage
Keep external cable protected from sun and weather

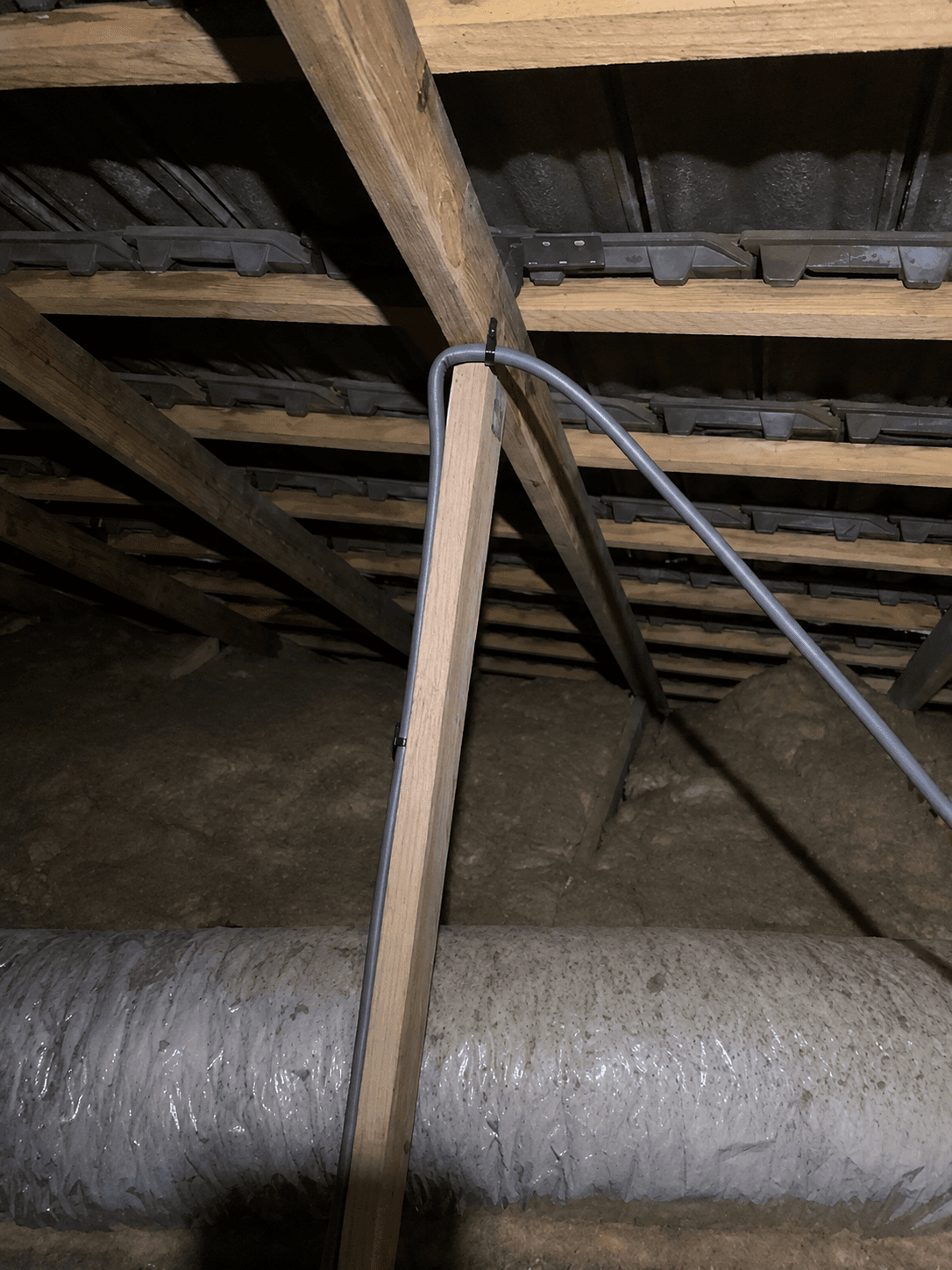

Starlink cable being run through roof space

STEP 5

Bring The Cable Into The Home

Once the cable path is planned, drill the wall entry carefully and bring the cable through to the router location.

The Starlink cable should be treated carefully. Avoid cutting, crushing or modifying the cable unless you know exactly what you are doing.

A dust plate or brush plate is recommended where the cable exits the wall. It gives a cleaner finish and helps keep the cable intact instead of trying to terminate or modify it unnecessarily.

Choose the router location before drilling
Drill carefully to avoid damage
Pull the cable through without crushing it
Use a dust plate or brush plate for a clean finish
Leave enough cable length for future adjustment

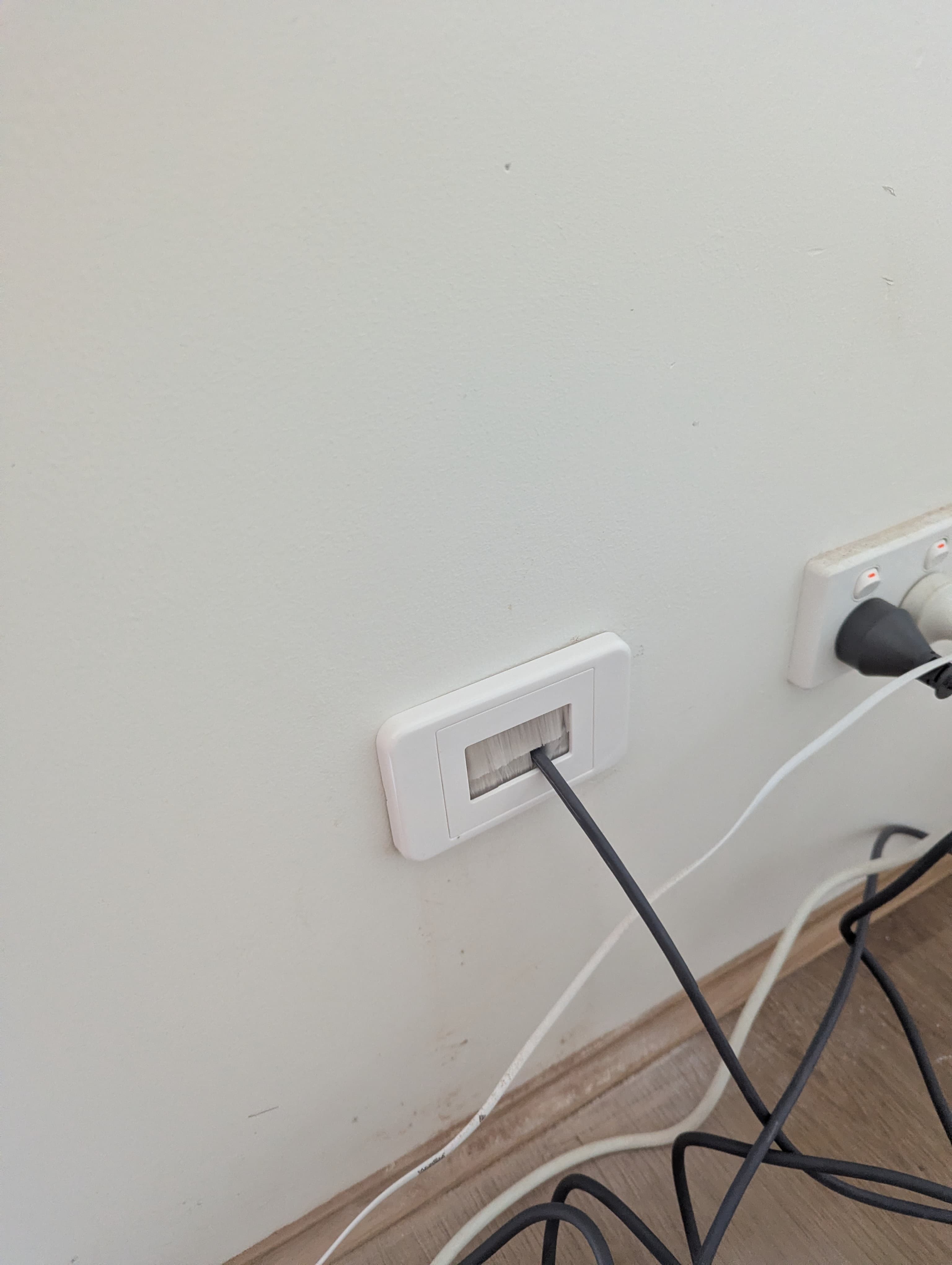

Starlink cable entering through a wall with a dust plate

STEP 6

Connect The Router

Once the dish cable is inside, connect the Starlink equipment and power up the system.

Plug the Starlink router into power
Connect the Starlink dish cable to the router or power supply as required by your kit
Wait for the system to boot
Check for status lights or app status
Keep the router in a sensible location, not hidden inside a metal cabinet or tucked behind heavy obstructions

STEP 7

Set Up Starlink In The App

The Starlink app walks you through the basic setup, including connecting to the default WiFi network and configuring your own WiFi name and password.

Download the Starlink app
Connect your phone to the temporary STARLINK WiFi network
Follow the app prompts
Set your WiFi name and password
Check the dish status
Check alignment and obstruction warnings

STEP 8

Check Final Alignment And Performance

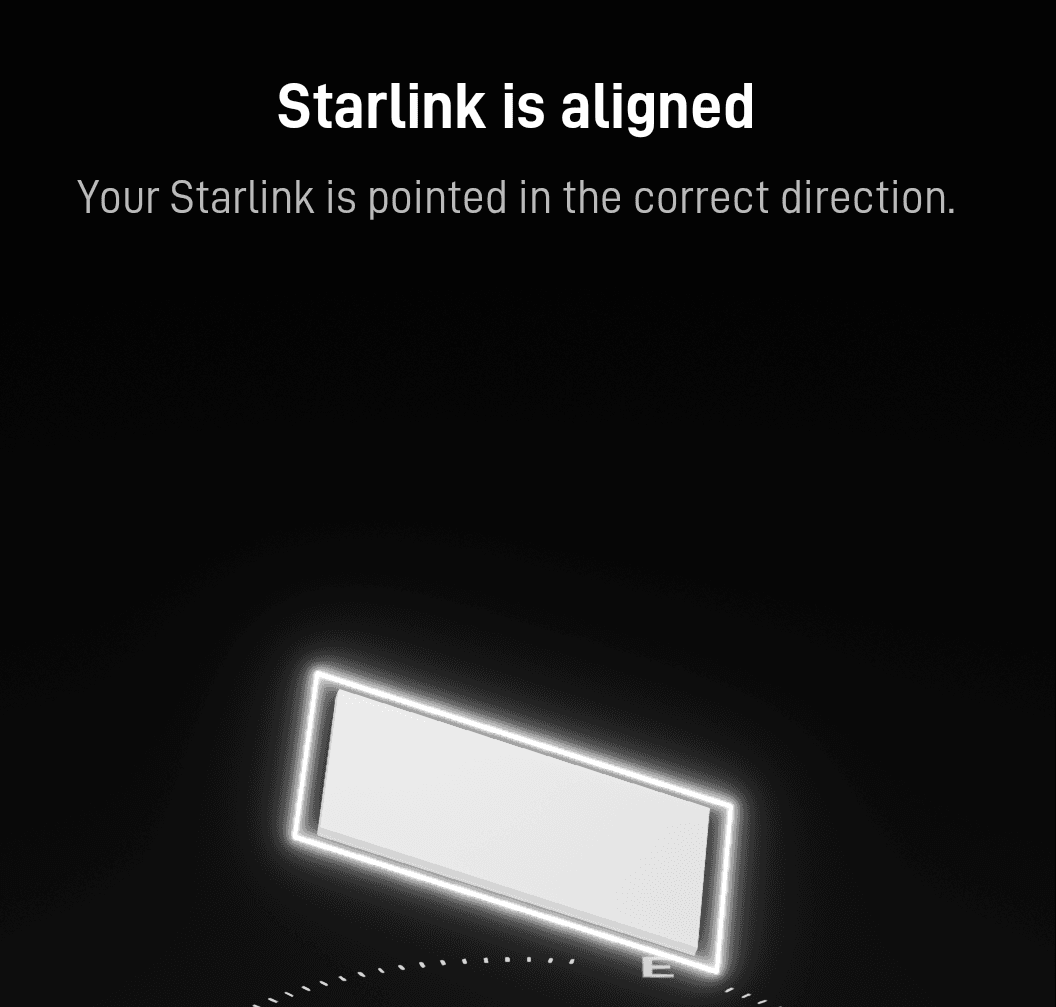

Once the dish is mounted and online, use the Starlink app to confirm alignment and check for obstructions.

Do not assume the job is finished just because the internet connects. A poor dish location or bad router position can still cause dropouts, slow speeds or weak WiFi inside the home.

After setup, check performance in the rooms where you actually use the internet. If the Starlink router does not cover the home properly, you may need mesh WiFi, a better router location, an access point, or a wired data point.

Confirm the dish is aligned correctly
Check for obstruction warnings
Run speed tests in several parts of the home
Check bedrooms, office areas, living areas and outdoor spaces
Consider mesh WiFi or access points if coverage is poor

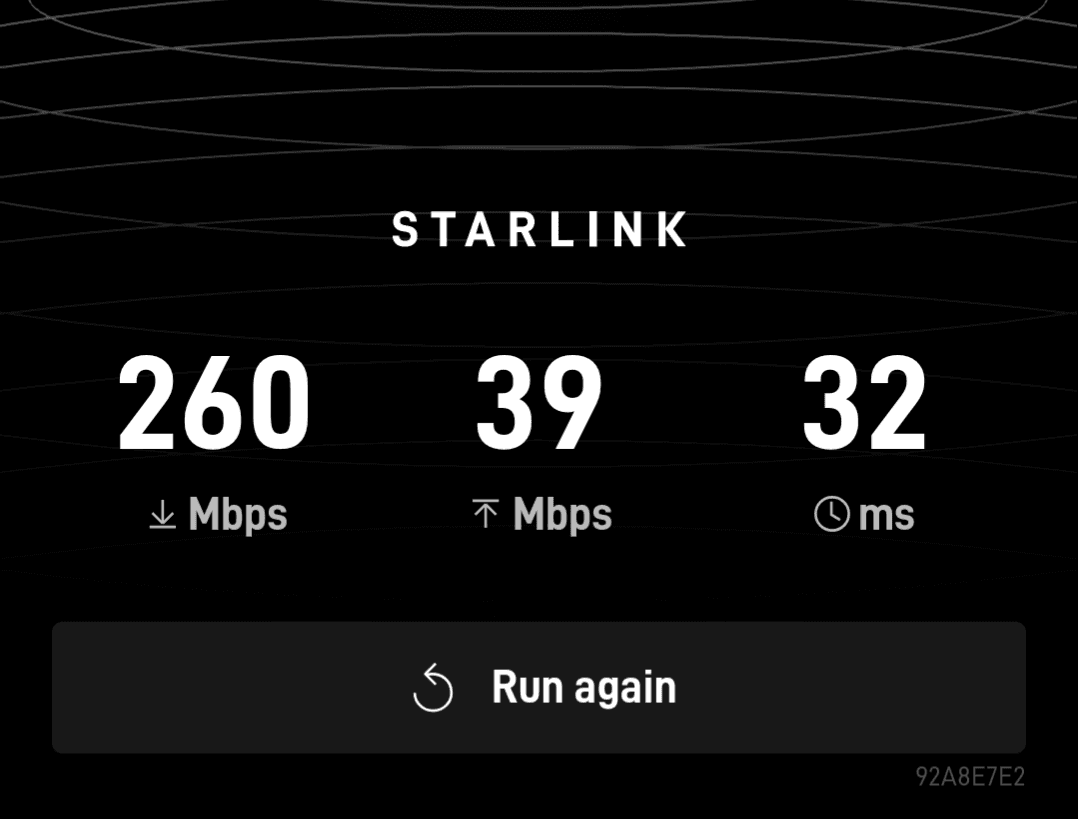

Testing Starlink WiFi speed inside a home

Starlink Is Only Half The Job — The Home WiFi Still Matters

A good Starlink installation is more than just putting a dish on the roof. The dish needs a clear view of the sky, the cable needs to be run cleanly, and the router or WiFi system needs to be set up properly for the home.

In many Perth homes, especially double brick homes or larger properties, the Starlink router alone may not provide strong WiFi everywhere. That is where mesh WiFi, access points, outdoor WiFi or shed links can make a big difference.

Blake Smart Solutions installs Starlink systems and can also help extend WiFi coverage through the home, to outdoor areas, or to sheds and workshops.

Need Starlink Installed Properly?

We can install your Starlink, run the cable cleanly, set up the router, and recommend WiFi upgrades if your home needs better coverage.

Call 0477 948 079

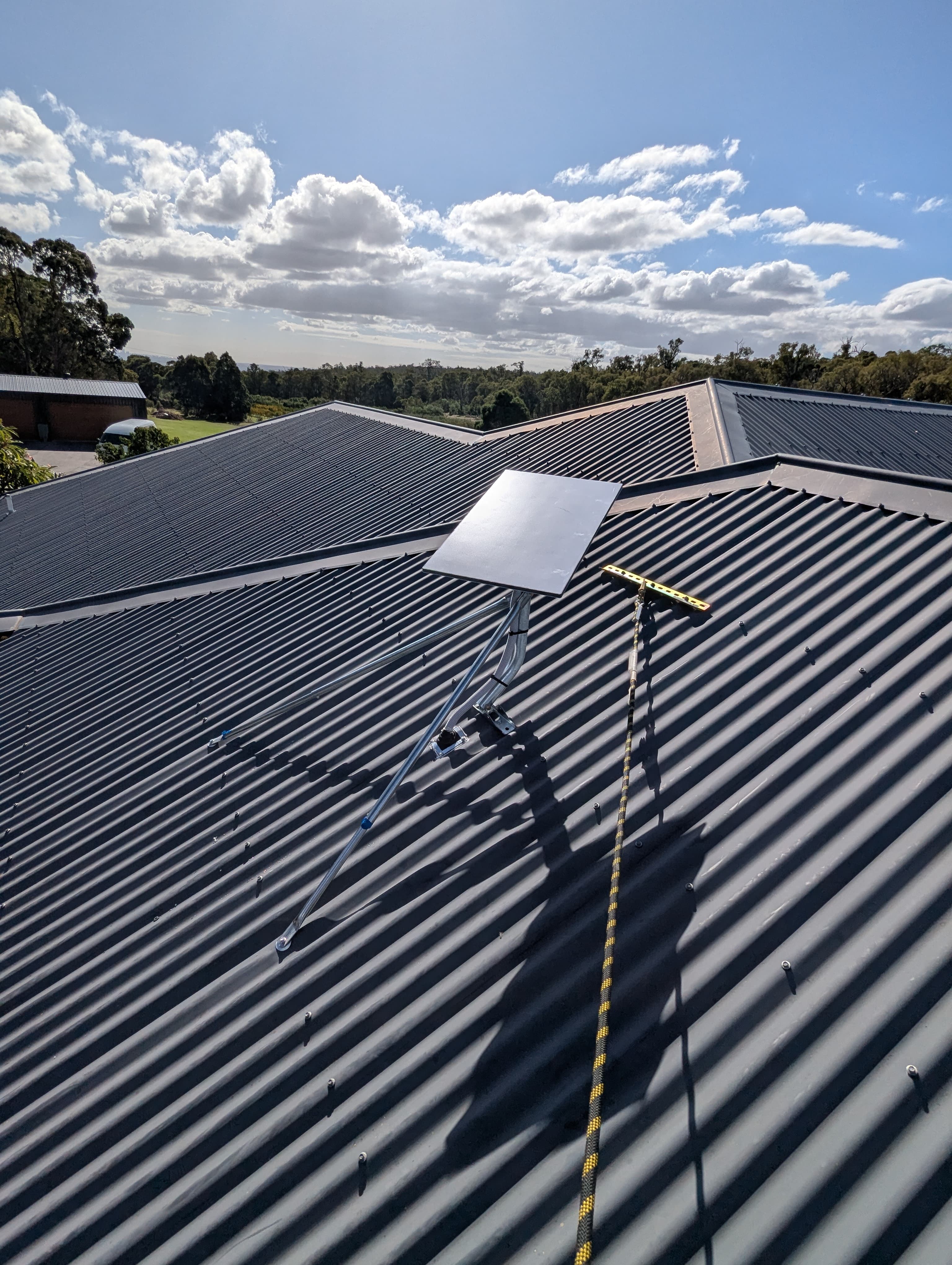

Completed Starlink installation on a Perth home
